Attention

After any generation, ModelMRI can show you which tokens each token looked at.

How to read it

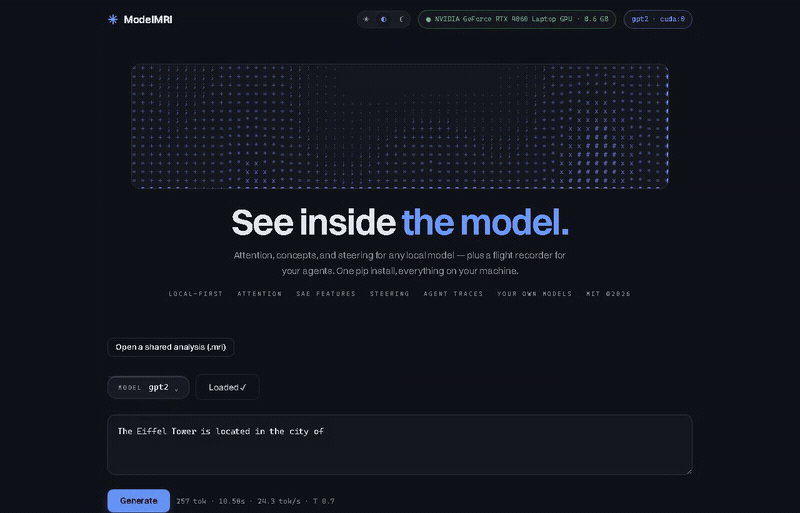

Every token in the sequence becomes a chip. Hover one — or Tab to it and the same thing happens — and arcs sweep back to the tokens it attended to. Arc thickness is the attention weight. Click, or press Enter, to pin a token so you can change layer and head while the arcs stay put.

The layer and head selectors move you through the model. This is where the interesting behaviour lives:

• Early layers attend broadly and locally. Top-5% attention mass around 27% is typical — the model is still smearing information around.
• Late layers are sharp. The same measure runs past 59%: specific heads have found specific things to look at.

If you generate The Eiffel Tower is located in the city of with GPT-2 and walk to the later layers, you can watch the token that produces " Paris" attend back to " capital" and " France".

What is actually computed

Attention weights are not a by-product of generation — they're thrown away unless you ask for them. So:

1. Generation finishes and the full token sequence is retained.
2. On the first attention request, ModelMRI runs one more forward pass over that sequence with output_attentions=True.
3. Every layer is cached as fp16 on CPU, so changing head or layer afterwards is instant.

That first request costs a real forward pass — seconds on CPU for a 0.5B model. The panel says computing… while it happens rather than showing you an empty box.

Why models load with eager attention

SDPA and FlashAttention never materialise the attention matrix — that's most of why they're fast. ModelMRI therefore loads models with attn_implementation="eager". It's slower, and it's the only way to see the numbers at all.

Reading the numbers honestly

Every row of the matrix is a softmax, so it sums to 1.0. ModelMRI's own tests assert that, along with the causal mask holding — no token attends to a token after it. If those ever stopped being true, the picture would be decorative rather than informative.

You will also see a large attention sink on the first token or a chat template's opening tag. That's real and well documented, not a bug: heads that have nothing useful to do park their mass somewhere harmless.

Which heads actually mattered

144 heat maps and no reason to open any particular one is a browsing tool. Rank heads turns it into a question: zero one head, run the model again, and measure how far the next-token distribution moves.

Rank heads → L0 H7  KL 0.825   p(" the") 0.082 → 0.065
             L0 H10 KL 0.559
             L0 H9  KL 0.469

The head dropdown comes back ordered, with each head's score on it, and the top head is selected for you. all N layers ranks the whole model.

That button only appears after you have ranked one layer, and that is deliberate — it quotes what the sweep will cost, and it cannot quote a number it has not measured. The cost is dominated by the forward-pass count (n_layers × n_heads + 2), and the per-pass time is stable enough to extrapolate from: on an RTX 4060, gpt2 runs 71 ms/pass and one layer predicts the full sweep at 10.4 s against 10.28 s actual; Qwen3-0.6B's 307 ms/pass predicts 138 s against 137.2 s. Both within 1%.

Three ways this number can be a confident lie

• head_dim is not hidden_size // n_heads. That quotient is right for gpt2 (768/12) and Qwen2.5-0.5B (896/14), and wrong on Qwen3-0.6B (64 against a real 128) and gemma-3-270m-it (160 against 256). It is read off the output projection's own width instead, and a mismatch is refused rather than guessed — the quotient would ablate half of one head plus half of the next and rank the result confidently.
• KL, not a logit difference. Softmax is shift-invariant, and ablation moves whole logit vectors. Zeroing gpt2's L0H0 on "The capital of France is" moves the top token's logit by −0.258, but the whole vocabulary moves by −0.145 — so the honest residual is −0.113, and a raw logit difference would call that head 2.3× more important than it is.
• The baseline is part of the answer. Zeroing a head and replacing it with its own mean over positions are different questions. On gpt2 layer 0 they give different answers: zero ranks heads 7, 10, 9; mean ranks 3, 1, 10, dropping head 7 to sixth. Both are offered and the one you used is named on screen.

And the claim it refuses to make: these are not each head's share of the prediction. On gpt2 layer 0 the twelve per-head scores sum to 1.995 while zeroing the whole layer gives 0.208 — eight times too much. On gemma-3-270m-it layer 0 it inverts: four per-head scores sum to 0.0007 against 6.57 for the layer, so every head looks irrelevant alone while the layer is load-bearing. Each score says one thing only: removing this head, on its own, moves the answer this much.

Scores at or below the measured noise floor are greyed rather than ranked. The floor is one extra forward pass with nothing ablated, and it measures exactly 0.0 on CPU and CUDA in fp32, bf16 and fp16 — the pass is what establishes that rather than assuming it.

What changes when a head is gone

Next to any ranked head, what changes? subtracts two runs of the same sequence: the model as it is, and the model with that head removed. Arcs appear in one colour where attention increased without the head and another where it decreased, scaled against the difference's own peak.

Both sides are forward passes over one token sequence, never two generations. Sampling diverges, and chat templates insert anywhere from 0 to 29 leading tokens, so subtracting two generations would line up token 5 of one sentence against token 5 of a different one and draw a smooth picture of nothing.

Why it opens at the next layer

Ablation removes a head's output. The layer that head lives in is computed from an unchanged input, so its attention is bit-identical every time — comparing there is guaranteed to show zero. The first layer that can differ is the next one, so that is where it opens. If a difference is genuinely zero, the panel says so instead of showing you an empty canvas.

Sharing what you found

A screenshot of a heat map cannot be explored, and "download this 8 GB model, use my exact prompt, and look at layer 14 head 3" is not a thing you can ask of a reader. Share this view writes a .mri instead: the tokens, the attention, the generation, the decode settings, and a one-line note saying what you think you found.

Share this view → "L8 H3 copies the subject token" → gpt2.mri (54 KB)

The person you send it to needs nothing at all: the hosted viewer reads the file in their browser. Nothing is uploaded — there is no server behind that page to upload to.

If they do have ModelMRI installed, the same page is bundled with it:

modelmri open gpt2.mri     # ~0.3s, no model, no torch

That serves the viewer from the standard library on the loopback interface and hands it the one file. It is deliberately not modelmri serve: reading a 54 KB recording should not import torch, which used to cost 26 seconds.

Or, if they already have ModelMRI running: click Open a shared analysis, or drop the file anywhere on the page. It works with no model loaded — the panels read the recording through exactly the same calls they use for a live model, so the arcs, the token strip and the layer/head dials all behave normally. The status pill says replay and the panel footer says recorded, not live, so there is never a moment where you could mistake one for the other.

What a .mri deliberately does not contain: weights. It is an observation, not a checkpoint. That is also why the features panel disappears in replay — SAE features need activations, which means it needs the model.

Attention is stored lossily, and the file says so

Attention values are quantised to one byte against each matrix's own maximum, then gzipped — that is what turns tens of megabytes into tens of kilobytes. Worst measured error on a real gpt2 run is 0.002, and the strongest attention in every row survives, so the picture you send is the picture they see. But if you plan to do arithmetic on the numbers rather than look at them, read meta.precision in the file first.

Loading a model, or generating your own run, closes an open session. Your output above someone else's heat map would be a discrepancy nothing on screen could explain.

Limits worth knowing

• Ollama models have no attention view. Ollama serves text over HTTP; the internals never leave its process. The panel says so instead of pretending.
• Attention is not explanation. A head attending to a token tells you where information moved, not why the model produced what it did. Treat it as one instrument among several — which is why features and steering exist.
• Changing the model invalidates the view. A generation belongs to the weights that produced it, and ModelMRI refuses to show one model's tokens through another model's forward pass.
